Dial Caliper TESA CCMA-M


Dial caliper with shockproof mechanism made from the same components used in the manufacture of swiss watches. Unique high accuracy instrument.






  • • Dial diameter  32 mm;
  • • Jaw length: 150mm - 40 mm, 200mm – 50mm, 300mm – 64mm;
  • • Robust construction with housing and protection of the gear mechanism;
  • • Material: hardened stainless steel or plastic housing;
  • • Measurement report and Declaration of conformity

Part
number		 Measuring
range, mm		 Resolution,
mm		 Revolution,
mm		 Thumb
roller		 Housing A,
mm		 B,
mm

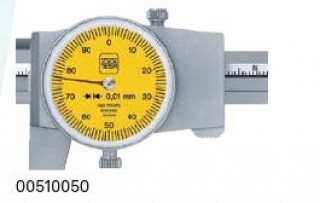

00510050 0÷150 0,01 mm 1 mm – steel 40 13
075115821 0÷150 0.02 mm 1 mm – steel 40 13

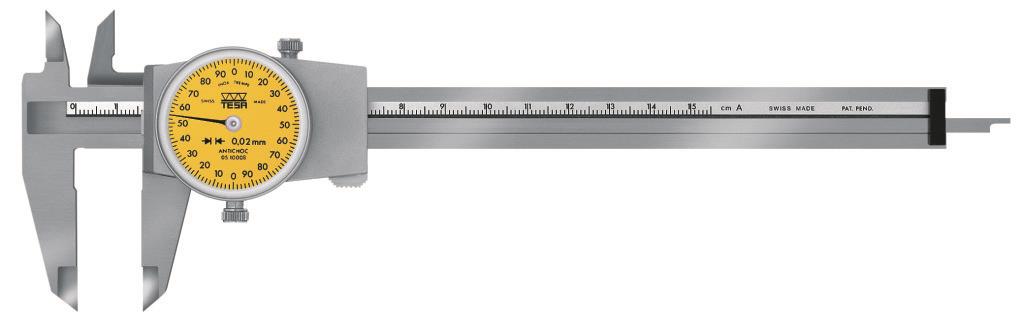

00510008 0÷150 0.02 mm 2 mm – steel 40 13

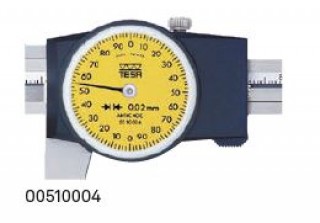

00510004 0÷150 0.02 mm 2 mm – plastic 40 13
00510045 0÷200 0.02 mm 2 mm • steel 50 18.6
00510046 0÷300 0.02 mm 2 mm • steel 64 20.6

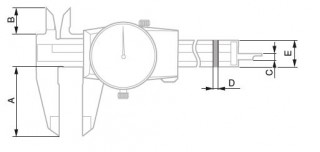

Scheme of model CCMA -M
More information for the models HERE
