Vernier Calipers

Vernier Calipers

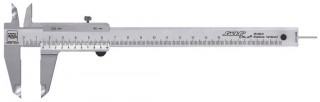

Vernier Calipers - Standard models
  • • Calipers offering great value for a low cost!
  • • Jaw length 150mm - 40 mm, 200mm – 50mm, 300mm – 64mm;
  • • Fitted with a locking screw;
  • • Depth Rod – ■, 1.5 x 2 mm
  • • Certificate - INSPECTION REPORT and declaration of conformity  supply with all calipers!

Part
number		 Measuring
range		 Resolution Self-locking A,
mm		 B,
mm
mm in mm  in
00510070 0÷150 - 0.02mm – – 40 21

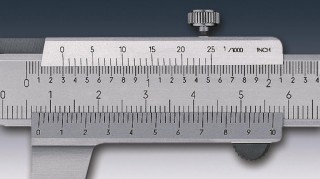

00530110 0÷150 0÷6 0.02mm 0.001in – 40 21
00530121 0÷150 0÷6 0.02mm 0.001in • 40 21
00510073 0÷150 - 0.05mm – – 40 21

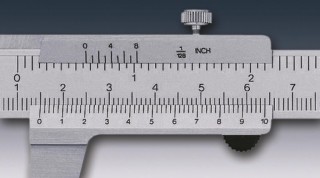

00530103 0÷150 0÷6 0.05mm 1/128in – 40 21
00530120 0÷150 0÷6 0.05mm 1/128in • 40 21
00510071 0÷200 - 0.02mm – – 50 23,5
00530111 0÷200 0÷8 0.02mm 0.001in – 50 23,5
00510074 0÷200 - 0.05mm – – 50 23,5
00530104 0÷200 0÷8 0.05mm 1/128in – 50 23,5
00510072 0÷300 - 0.02mm – – 64 27,5
00530112 0÷300 0÷12 0.02mm 0.001in – 64 27,5
00510075 0÷300 - 0.05mm – – 64 27,5
00530105 0÷300 0÷12 0.05mm 1/128in – 64 27,5

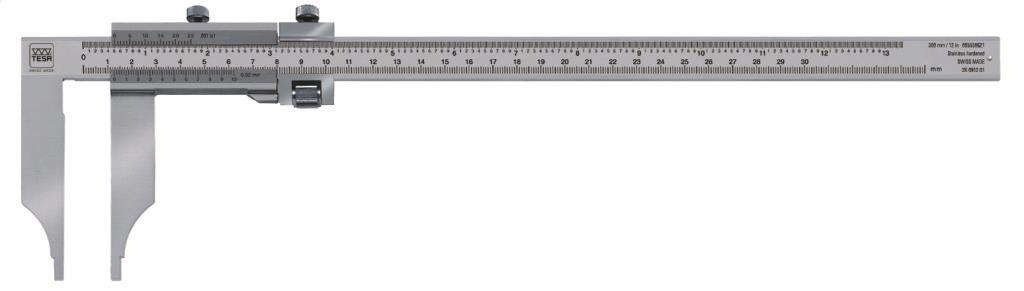

Workshop vernier models with
rounded internal measuring faces

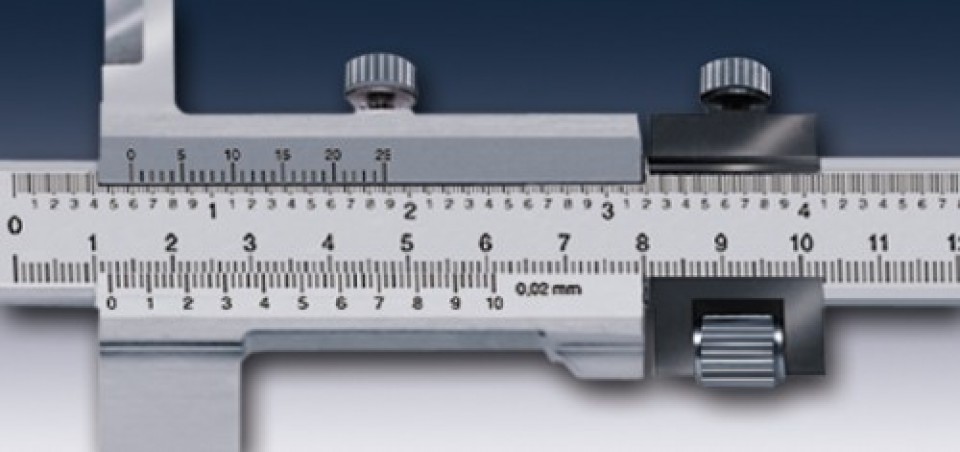

  • • Models with fine adjustment;
  • • Fitted with a locking screw;
  • • Jaw length: 200mm: 60mm, 300mm – 90mm, 500mm – 150mm
  • • Certificate - INSPECTION REPORT and declaration of conformity  supply with all calipers!

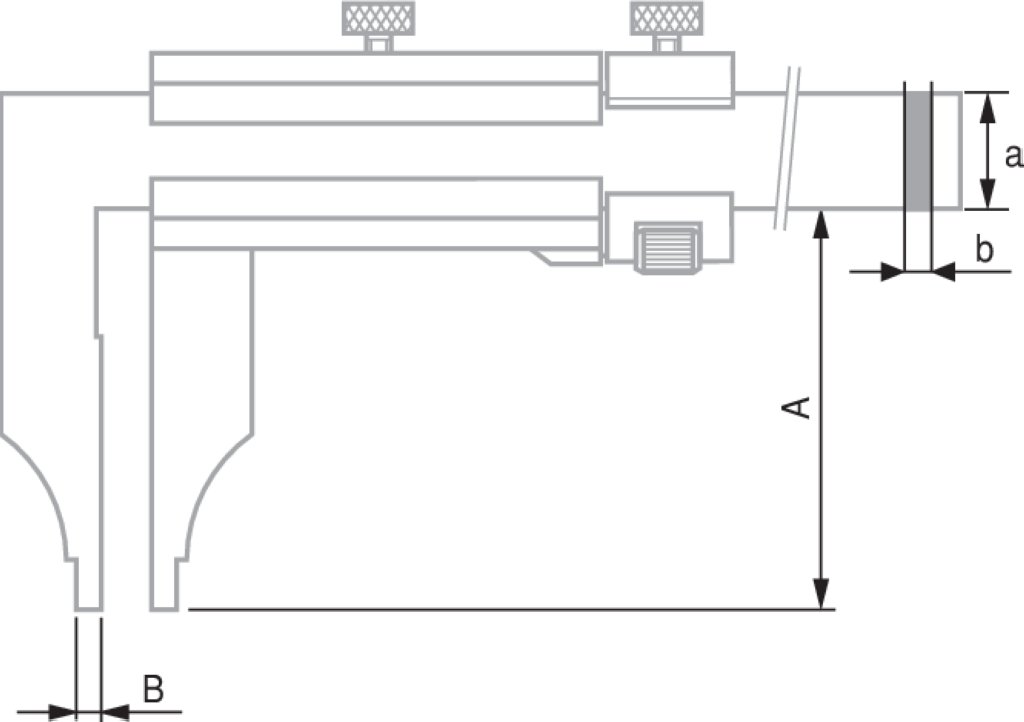

Part
number		 Measuring
range		 Resolution Fine
adjustment		 А,
mm		 B,
mm		 b,
mm		 D,
mm
mm in mm in
00510509 0÷200 – 0.02 – – 60 5 3,5 17
00510601 0÷200 – 0.02 – • 60 5 3,5 17
00510506 0÷200 – 0.05 – – 60 5 3,5 17
00510602 0÷200 – 0.05 – • 60 5 3,5 17
00530506 0÷200 8 0.05 1/128 – 60 5 3,5 17
00530602 0÷200 8 0.05 1/128 • 60 5 3,5 17
00510521 0÷300 – 0.02 – – 90 5 4 20
00510621 0÷300 – 0.02 – • 90 5 4 20
00510522 0÷300 – 0.05 – – 90 5 4 20
00510622 0÷300 – 0.05 – • 90 5 4 20
00530522 0÷300 12 0.05 1/128 – 90 5 4 20
00530622 0÷300 12 0.05 1/128 • 90 5 4 20
00510541 0÷500 – 0.02 – – 150 10 6 28
00510641 0÷500 – 0.02 – • 150 10 6 28
00510542 0÷500 – 0.05 – – 150 10 6 28
00510642 0÷500 – 0.05 – • 150 10 6 28
00530542 0÷500 20 0.05 1/128 – 150 10 6 28
00530642 0÷500 20 0.05 1/128 • 150 10 6 28

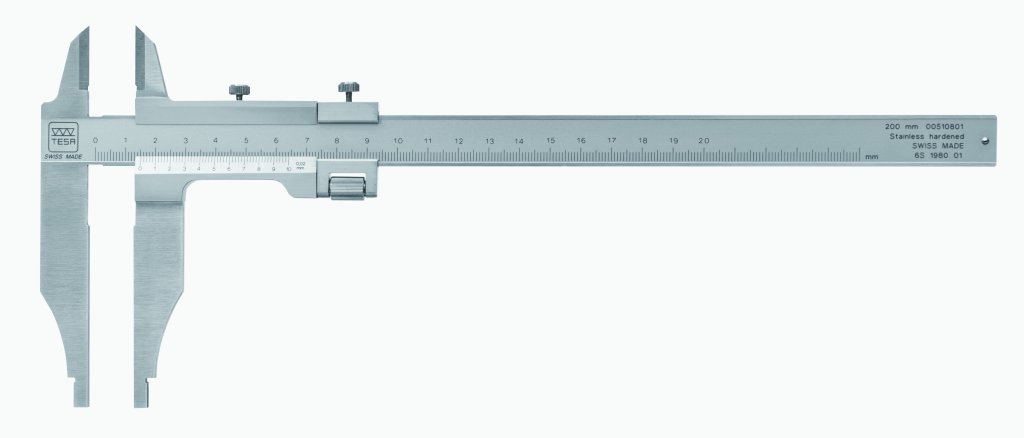

Workshop vernier models with rounded internal
measuring facesand knife-edge external jaws



  • • Models with fine adjustment;
  • • Fitted with a locking screw;
  • • Jaw length: 200mm: 60mm, 300mm – 90mm, 500mm – 150mm
  • • Certificate - INSPECTION REPORT and declaration of conformity  supply with all calipers!

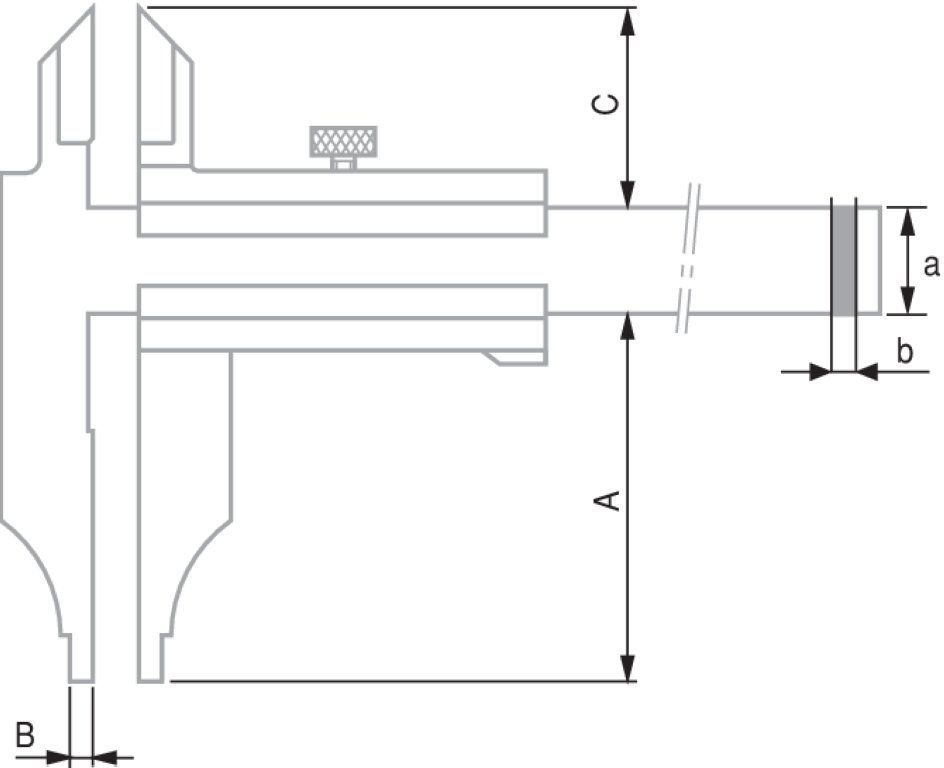

Part
number		 Measuring
range		 Resolution Fine
adjustment		 A,
mm		 B,
mm		 C,
mm		 b,
mm		 a,
mm
mm in mm in
00510701 0÷200 – 0.02 – – 60 5 30 3,5 17
00510801 0÷200 – 0.02 – • 60 5 30 3,5 17
00510702 0÷200 – 0,05 – – 60 5 30 3,5 17
00510802 0÷200 – 0,05 – • 60 5 30 3,5 17
00530702 0÷200 8 0,05 1/128 – 60 5 30 3,5 17
00530802 0÷200 8 0,05 1/128 • 60 5 30 3,5 17
00510721 0÷300 – 0.02 – – 90 5 38 4 20
00510821 0÷300 – 0.02 – • 90 5 38 4 20
00510722 0÷300 – 0.05 – – 90 5 38 4 20
00510822 0÷300 – 0.05 – • 90 5 38 4 20
00530722 0÷300 12 0.05 1/128 – 90 5 38 4 20
00530822 0÷300 12 0.05 1/128 • 90 5 38 4 20
00510741 0÷500 – 0,02 – – 150 10 60 6 28
00510841 0÷500 – 0,02 – • 150 10 60 6 28
00510742 0÷500 – 0,05 – – 150 10 60 6 28
00510842 0÷500 – 0,05 – • 150 10 60 6 28
00530742 0÷500 20 0,05 1/128 – 150 10 60 6 28
00530842 0÷500 20 0,05 1/128 • 150 10 60 6 28


More information about vernier calipers  HERE
