Accessories for lever dial test indicators

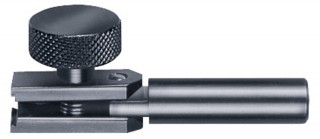

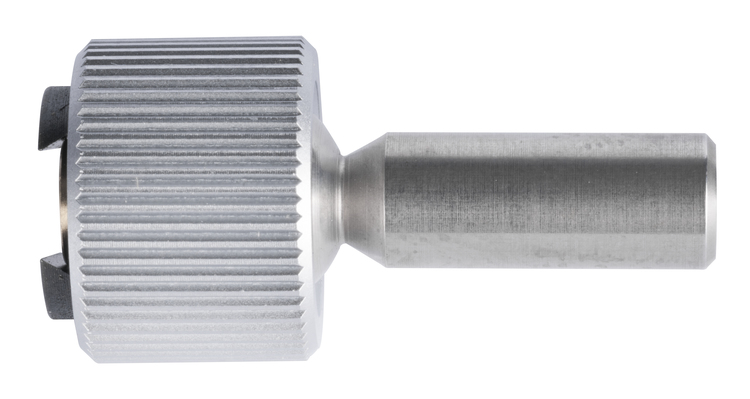

Clamps
| Part numbers | Diameter, mm | Designation |
| 01860401 | Dovetail clamp with tightening screw | |
| SPT | 8 mm | Swivel clamp Ø 8 mm |
Holder
.jpg)
| Part numbers | Designation |
| 01840202 | Mounting rod |

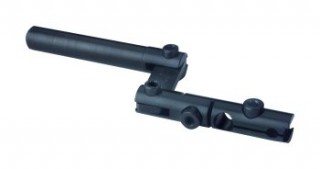

Swivel holder
| Part numbers | Designation |
| 01840404 | Short swivel holder |
| 01840405 | Long swivel holder |
| 01840407 | Long swivel holder, fine adjust |
| 074106026 | Holder |
Mounting rods
| Part numbers | Designation |
| 01840104 | Mounting rod |
| 01840105 | Mounting rod |
| 01860008 | Mounting rod |

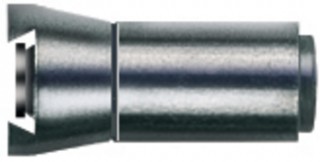

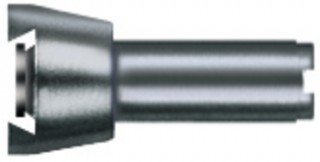

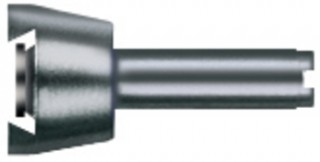

Mounting rods with dovetail grip
| Part numbers | Designation | Diameter, mm |
| 01840106 | Mounting rod | 8 mm |
| 01840107 | Mounting rod | 8 mm |
| 01840108 | Mounting rod | 4 mm |
| 01840109 | Mounting rod | 4 mm |
Universal supports
.jpg)
| Part numbers |
| 01840408 |
| 01840409 |

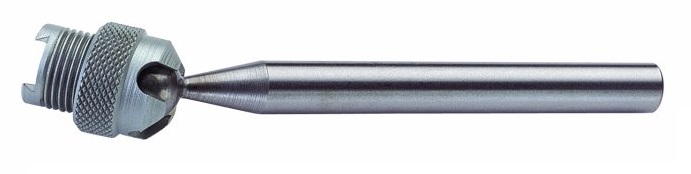

Centring holder
| Part numbers | Designation |
| 01840501 | Centering holder |

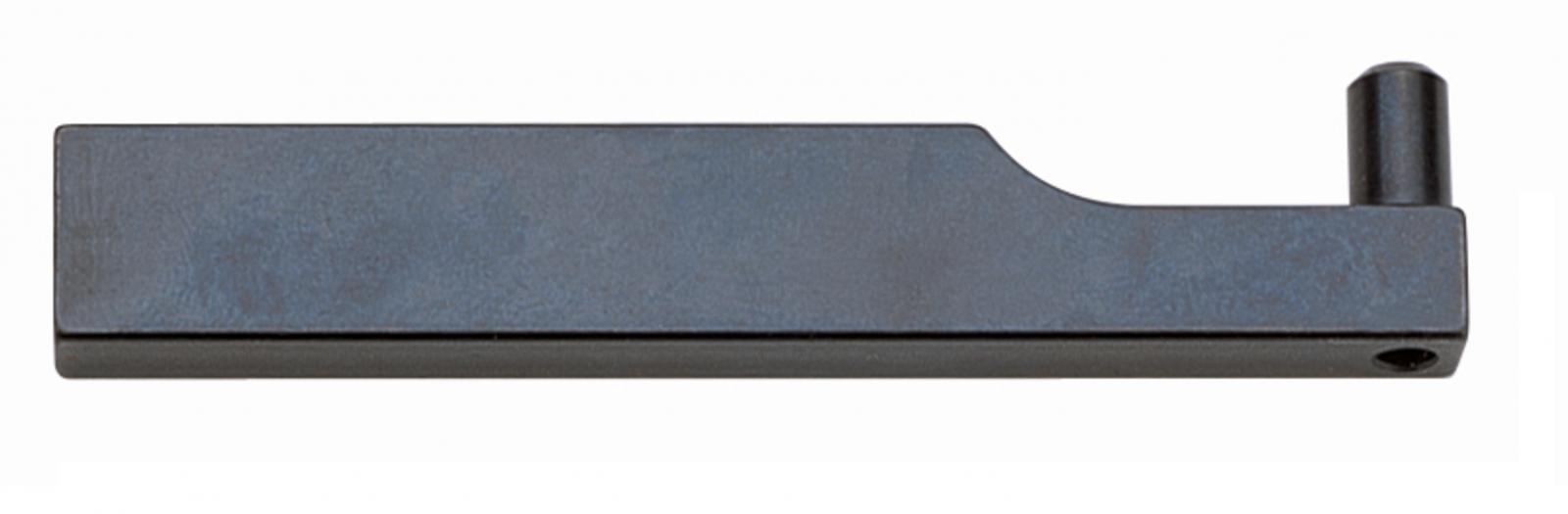

Angular swivel holders
| Part numbers | Designation |
| 01840406 | Angular swivel holder |

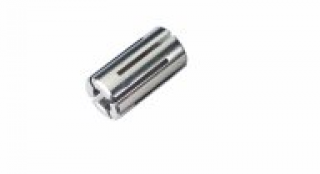

Reducing sleeves
| Part numbers | Designation |
| 074108942 | Reducing sleeve |
