Wireless transmission systems

Most digital TESA instruments can be easily and quickly upgraded to the TESA Bluetooth® solution for data transmission

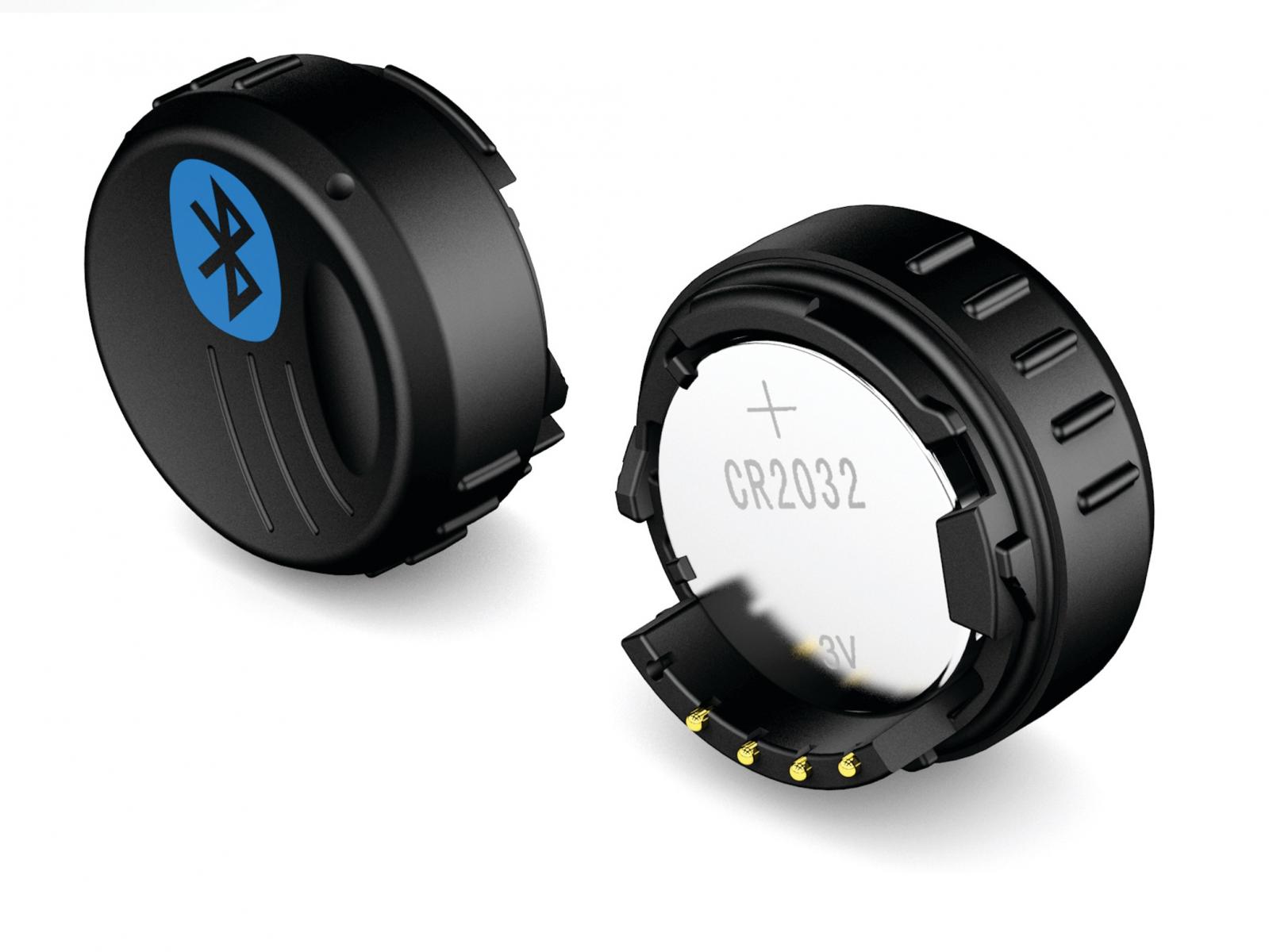

TLC-BLE Bluetooth transmitter

  • • Bluetooth 4.0 2014/53/UE
  • • Range: 12 m (depending on environment)
  • • Degree of protection: IP67
  • • Operating temperature: +10°C ÷ +40°C
  • • Storage temperature: -10°C ÷ +40°C
  • • Weight: 7,2 g
  • • Power supply: 1 x CR 2032, 3 V, 230 mAh

Part numbers Designation
04760183 Complete kit TLC-BLE Bluetooth® emitter + USB dongle receiver + 1,5 m extension cable
04760184 TLC-BLE Bluetooth® emitter
04760185 USB dongle receiver + 1,5 m extension cable

TLC-BLE adapters
Adapters for upgrading certain TESA instruments without TLC port to the TLC-BLE wireless data transmission system.
Part numbers Designation

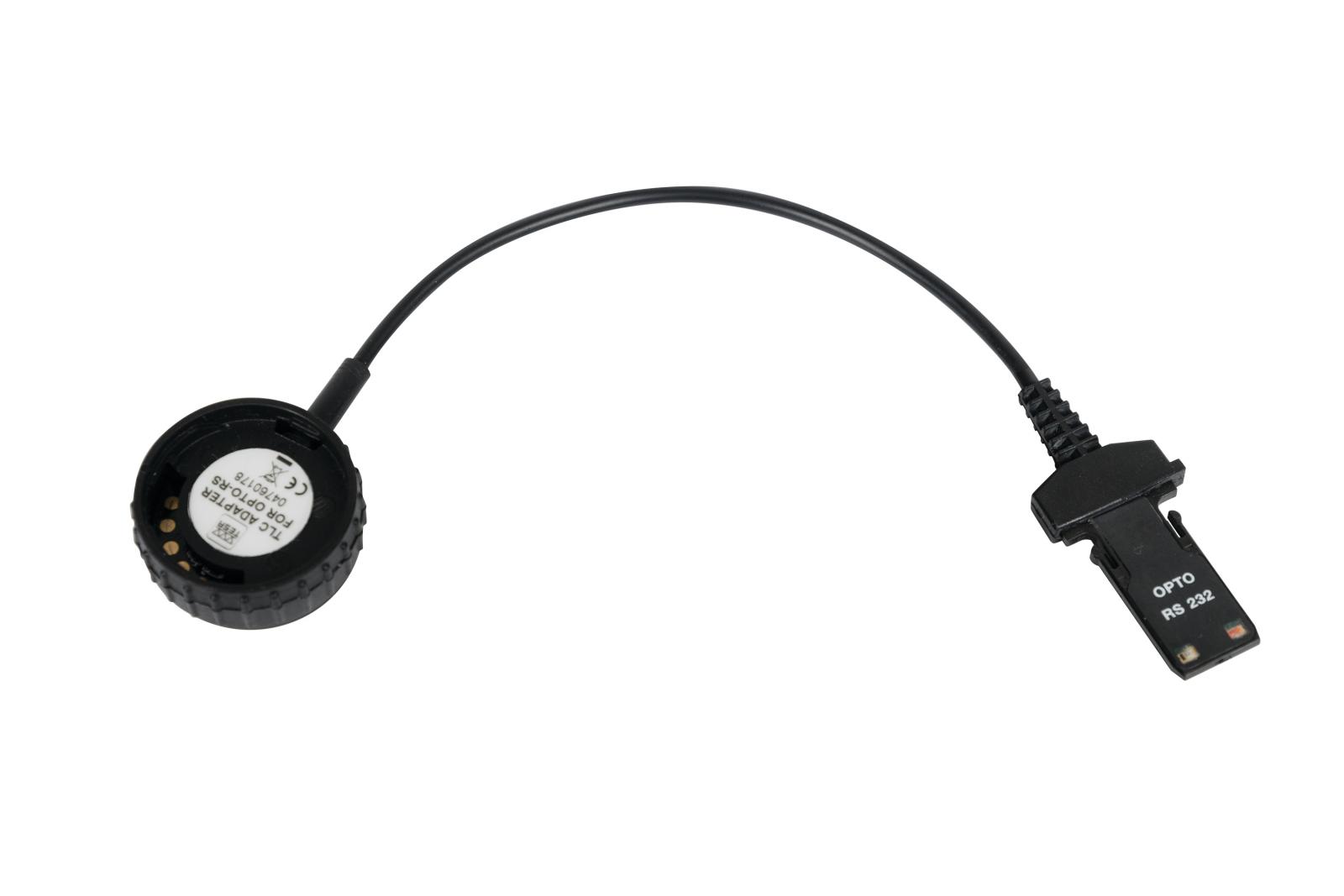

04760178 OPTO RS to TLC adapter
04760179 RS-232 to TLC adapter

More information here
