Data processing software


Inspection, traceability and cost reduction have a growing significance in all industrial sectors. This requires not only high quality metrology instruments, but also software suitable for evaluation and further analysis of the measurements carried out

DATA-VIEWER software




  • • Software downloadable free of charge from the TESA website
  • • For data reception via cable (USB) and via Bluetooth®
  • • Instruments automatically recognised and connected
  • • A USB receiver can be used for the wireless connection of 8 instruments
  • • Up to 40 instruments can be connected at the same time
  • • Clear interface for easy handling without confusion
  • • Results are exported in real time to external processing software
  • • Automatic creation of files in known formats such as *.xls, *.csv or *.txt
  • • Real-time filling of report templates created in external program (e.g. Excel)

Part numbers Designation Software minimal
requirements		 Hardware minimal
requirements
DATA-VIEWER Free data acquisition software Windows 7/10,
32 or 64 bits		 Intel i5 or equivalent,
4 GB RAM, 100 MB HDD

More information here

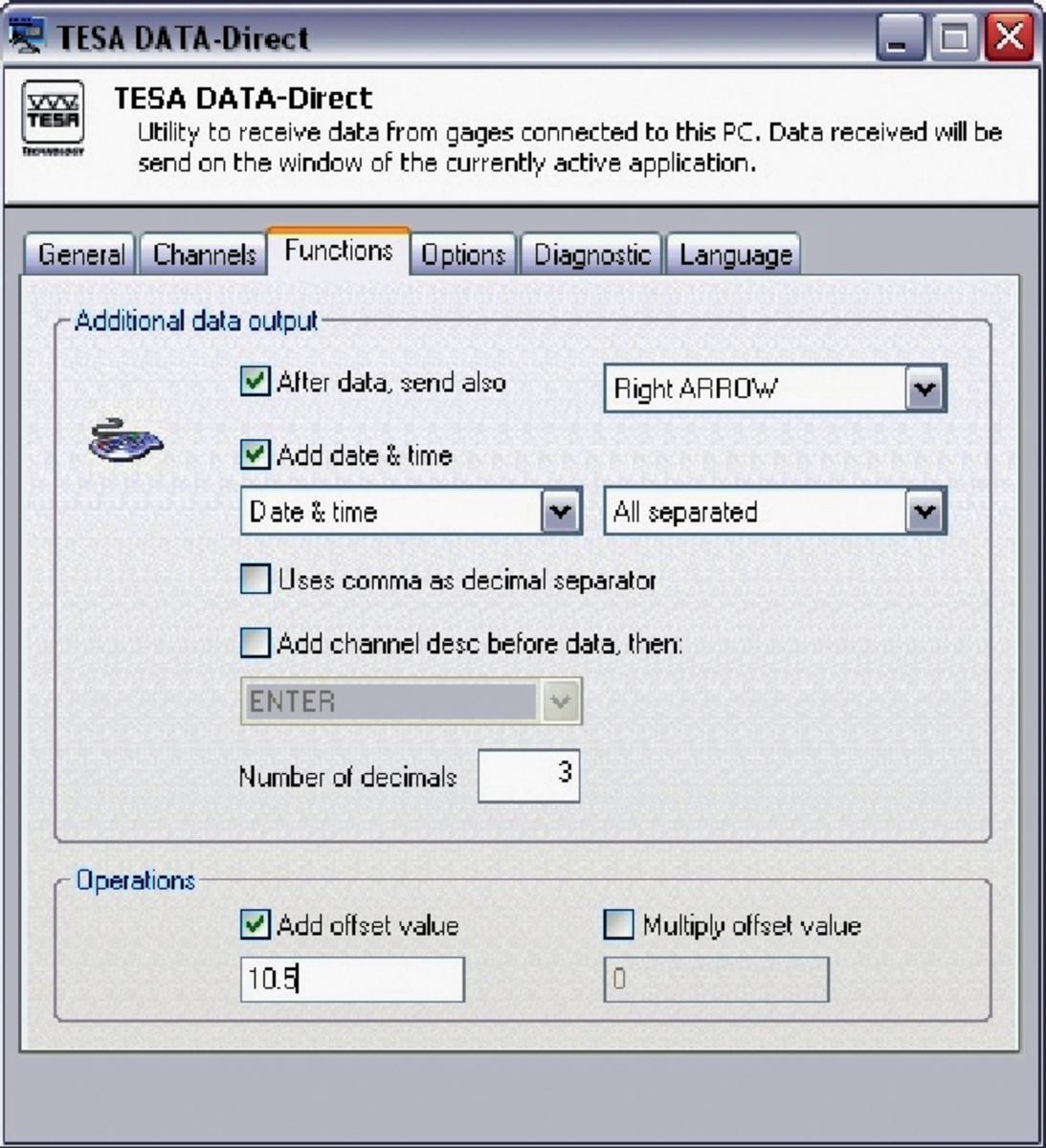

DATA-DIRECT software




  • • On the TESA website it is possible to download limited version free of charge (only one instrument can be connected) or a full demo version is available (usable 30 days)
  • • Connection for data reception via cable (USB) or Bluetooth® (through the use together with DATA-VIEWER)
  • • Measured value is displayed
  • • Configurable format for data transmission (cells management)
  • • Allows for programmed reception of data on a continuous basis (data pooling)
  • • Automatic creation of files in *.csv format
  • • ASCII commands
  • • Allows for real-time filling of report templates created in external program (e.g. Excel)
  • • Compatible TESA instruments: all measuring instruments equipped with an Opto-RS232 output, TLC output (cable connection),TLC output (Bluetooth® connection) using DATA-VIEWER
  • • Included in delivery: installation CD, USB key licence (dongle), instruction manual

Part numbers Designation Software minimal
requirements
04981001 DATA-DIRECT software Windows 7/10,
32 или 64 bits

More information here

STAT-EXPRESS software

  • • On the TESA website it is possible to download limited version free of charge (only one instrument can be connected) or a full demo version is available (usable 30 days)
  • • Connection for data reception via cable (USB) or Bluetooth® (through the use together with DATA-VIEWER)
  • • Measurements by part or by characteristic
  • • Unlimited creation of measurement programs
  • Simultaneous acquisition of several measurement programs
  • • PASS / FAIL classification
  • • Measured value is displayed in real time
  • • Statistics, calculation and XR control card in real time
  • • Accesses protected by user level
  • • Import/export of *.csv file
  • • Report per measured characteristic or per measured part
  • • Automatic creation of measurement protocols with photo and operational instruction
  • • Measurement report in *.pdf, *.html or other format
  • • Compatible TESA instruments: all measuring instruments equipped with an Opto-RS232 output, TLC output (cable connection),TLC output (Bluetooth® connection) using DATA-VIEWER
  • • Included in delivery: installation CD, USB key licence (dongle), instruction manual, DATA-DIRECT software (included in STAT-EXPRESS)

Part numbers Designation Software minimal
requirements
04981002 STAT-EXPRESS software Windows 7/10,
32 или 64 bits

More information here
