Magnetic or suction base support

Magnetic or suction base support

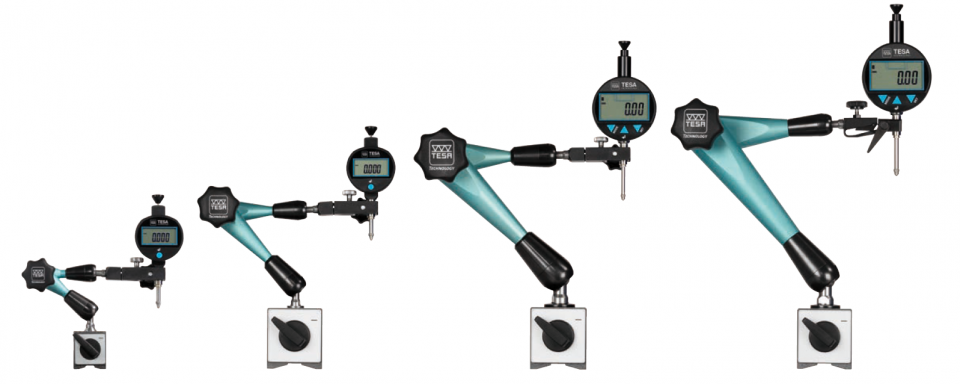

New articulated stands TESA 3D
  • • Fine adjustment
  • • Included in delivery:
    •           1 x articulated arm - 120 mm
    •           1 x  clamp
    •           1 x magnetic base
  • • Declaration of conformity

Part number Measuring force, N   H / L, mm Base
01639060 ≈ 300  205 / 120 34 x 30 x 35
01639061 ≈ 800 310 / 200 60 x 50 x 55
01639062 ≈ 800 390 / 280 60 x 50 x 55
01639063 ≈ 1000 445 / 330 73 x 50 x 55


Suction supports and articulated arm INTERAPID and TESA 3D

Holds firmly on any smooth and flat surface. Clamps instantly and reliably using a suction lever switch. Highly rigid articulated arm. Free from magnetic fields.


  • • Round suction base made of aluminium (Ø 88 mm, height 28 mm) with flat suction base
  • • Fine adjustment
  • • Articulations made from duralumin
  • • Weights: 1,1 kg

Part number Measuring force, N  H / L, mm
01639064 ≈ 300 365 x 280
Magnetic support with flexible arm INTERAPID

For measurements in hard to reach locations. Instant and reliable locking through lever control


  • • Base: 60 x 53 x 58 mm
  • • V-base for Ø 30 ÷ 150 mm
  • • Declaration of conformity

Part number Dimensions, mm Measuring force, N
01639020 350 On a flat surface ≈ 1000


Small magnetic support INTERAPID UJ 15

Ideal for lever type dial test indicators, and dial gauges up to 40 mm diameter. With 2 articulation joints and fine adjustment


  • • Rounded base with permanent magnet
  • • Weights: 0,47 kg
  • • Dovetail clamp with a Ø 8 mm clamping bore

Part number Measuring force, N
01639007 On a flat surface ≈ 220


More information here
